Detailed description

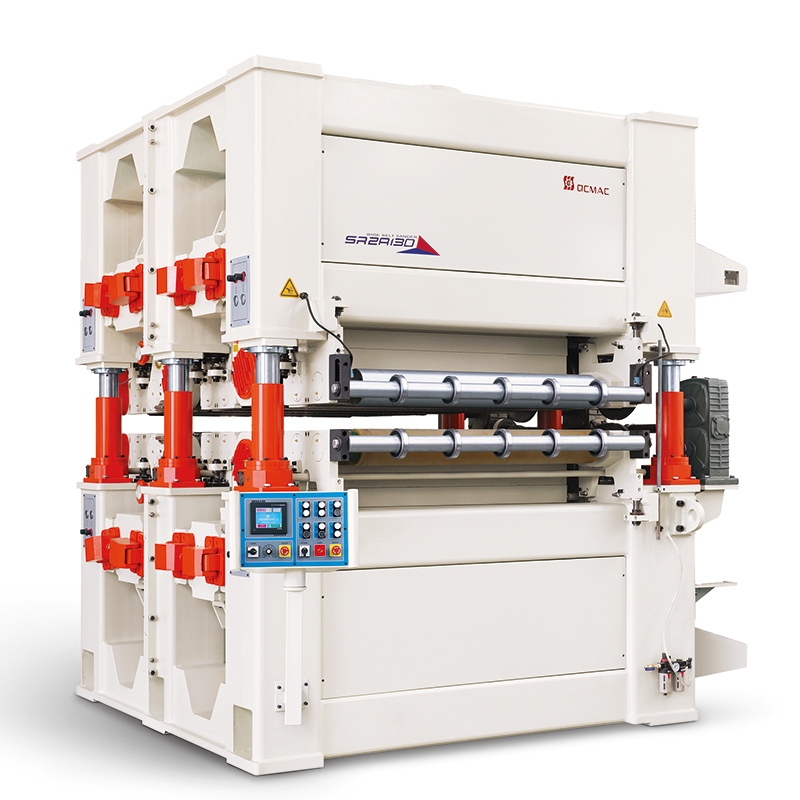

SR2A 13D Characteristics
Incorporating advanced technology ,using high quality imported parts and accessories and featuring stable performance ,precision double-side processing with thickness tolerance of± 0.1mm.
The machine is structured by cold forming rectangle steel,noted for high rigidity,vibration damping and deformation free.
Easily operated inverter speed regulator for reliable meterial feeding.
Simplified operation of the computer terminal with the industrial-grade touch screen.
400mm,350mm diameter of contact drum,considering all the factors as drums'weight,distortion and sand capability.
SR2A 16D Characteristics
The sanding roller is disposed by using foreign technology.
The machine adopts the advanced computer terminal than makes the operation easy and clear.
The conveyor table is supported by precision ball screws,providing extremely smooth and accurate table elevation.
The main parts is foreign technology of no weldment.
Workingpiece is in ±0.135mm.
SR2A 20D Characteristics
The sanding roller is disposed by using foreign technology.
The machine adopts the advanced computer terminal that makes the operation easy and clear.
The conveyor table is supported by precision ball screws,providing extremely smooth and accurate table elevation.
The main parts is foreign technology of no weldment.
SR2A 13D Technical features
|
Working thickness
|
3-90mm
|
Motors
|
Feed motor
|
11kw
|
|
Working length
|
>900mm
|
Litft motor
|
1.5kw
|
|
|
Working width
|
200-1300m
|
Compressed air
|
Brush motor
|
1.1kwx2
|
|
Abrasive belt speed
|
24m/s
|
Working air pressure
|
0.6Mpa
|
|
|
Size of abrasive belt(WxP)
|
1350x2800mm/1350x3000mm
|
Exhaust air consumption
|
Consumption
|
0.3m3/min
|
|
Feed speed
|
6-30m/min
|
Exhaust air consumption
|
32000m3/h
|
|
|
Main motor
|
75kwx2
|
Pressure
|
1300pa
|
|
|
Air speed
|
25-30m/s
|
|||
|
Overall dimension (LXWXH)
|
3200x3900x2980mm
|
Net weight
|
24T
|
|
SR2A 16D Technical features
|
Working thickness
|
3-90mm
|
Motors
|
Feed motor
|
15kw
|
|
Working length
|
>900mm
|
Litft motor
|
3kw
|
|
|
Working width
|
500-1600m
|
Compressed air
|
Brush motor
|
1.1kwx2
|
|
1#Abrasive belt speed
|
29m/s
|
Working air pressure
|
0.6Mpa
|
|
|
2#Abrasive belt speed
|
27m/s
|
|
|
|
|
Size of abrasive belt(WxP)
|
1650x2800mm/1650x3000mm
|
Exhaust air consumption
|
Consumption
|
0.3m3/min
|
|
Feed speed
|
6-30m/min
|
Exhaust air consumption
|
42000m3/h
|
|
|
Main motor
|
90kwx2/75kwx2
|
Pressure
|
1300pa
|
|
|
Air speed
|
25-30m/s
|
|||
|
Overall dimension (LXWXH)
|
3200x4100x2980mm
|
Net weight
|
32T
|
|
SR2A 20D Technical features
|
Working thickness
|
3-90mm
|
Motors
|
Feed motor
|
18kw
|
|
Working length
|
>900mm
|
Litft motor
|
3kw
|
|
|
Working width
|
800-1900m
|
Compressed air
|
Brush motor
|
1.5kwx2
|
|
1#Abrasive belt speed
|
29m/s
|
Working air pressure
|
0.6Mpa
|
|
|
2#Abrasive belt speed
|
27m/s
|
|
|
|
|
Size of abrasive belt(WxP)
|
1650x3000mm/1950x3200mm
|
Exhaust air consumption
|
Consumption
|
0.3m3/min
|
|
Feed speed
|
6-30m/min
|
Exhaust air consumption
|
58000m3/h
|
|
|
Main motor
|
110kwx2/90kwx2
|
Pressure
|
1300pa
|
|
|
Air speed
|
25-30m/s
|
|||
|
Overall dimension (LXWXH)
|
3200x4400x2980mm
|
Net weight
|
38T
|
|
