Detailed description
Characteristics

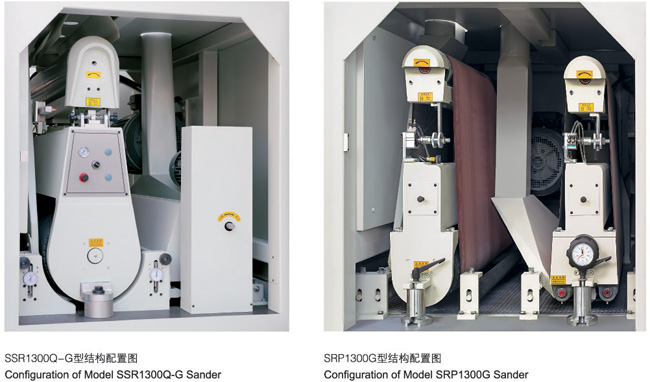

ModelSSR1300Q-G is consisted of one strong contact drum and one polishing roller,it is special for lacquers fine sanding.
Model SRP1300G is suitable for calibrating and fine sanding Woodboard,Woodfloor ,Artifical Marble etc.
Technical features
|
|
SSR1300Q-G
|
SPR1300G
|
|
Working width
|
40-1300mm
|
40-1300mm
|
|
Working thickness
|
3-120mm
|
3-100mm
|
|
Working length
|
≥340mm
|
≥450mm
|
|
Working height
|
800mm
|
800mm
|
|
Feed speed
|
6-30m/min
|
6-30m/min
|
|
Main motor power
|
15kw
|
22kw,11kw
|
|
Feeding motor
|
3kw
|
4kw
|
|
Size of belt(WxP)
|
1330x2620mm
|
1330x2200mm
|
|
Abrasive Belt Speed
|
3-12m/s
|
|
|
Working pressure
|
0.55Mpa
|
0.55Mpa
|
|
Consumption of compressed air
|
0.9m3/min
|
0.15m3/min
|
|
Volume of sucked air
|
7000m3/h
|
9500m3/h
|
|
Speed of sucked air |
25-30m/s
|
25-30m/s
|
|
Overall dimension(LxWxH)
|
2280x2040x2230mm
|
2360x2030x2320mm
|
|
Net weight
|
4000kg
|
|
